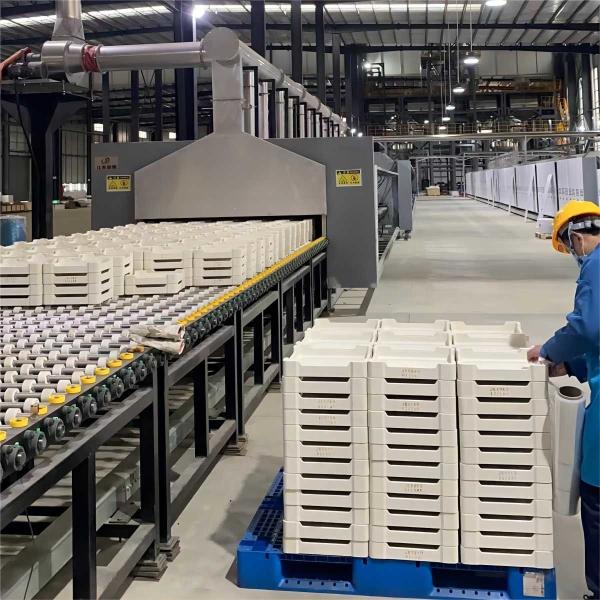

Continuous Roller Hearth Annealing Furnace Industrial Heat Treatment Oven
The Roller hearth furnace is used for anode and cathode materials, high nickel 811, NCA, LFP, NMC, ceramic, magnetic materials, alumina powder, catalysts in continuous production.
Various heating methods are available, including gas-fire and resistive heating
1﹑Applicable Material
Lithium battery materials, advanced ceramic materials, high-purity alumina powder, catalysts, magnetic materials, rare earth materials
2﹑Technical Specification
| MAX temperature | 1350℃ |
| Working temperature | 1300℃ |
| Roller material | silicon carbide or alumina ceramics. |
| Chamber size | customized according to the customer's actual process, production capacity and technical requirements |
| Arrangement | 4 columns and 2 layers,4 columns and 1 layer,3columns and 2 layers, etc |
| Heating element | Silicon carbide rod or high-temperature resistance wire |
| Heating method | horizontal heating |
3﹑Advantage
1. Built with new refractory materials, arched structure on top, which has a long service life and uniform exhaust.
2. with excellent thermal efficiency, and the uniformity of temperature field can reach ±5°C.
3. Special intake and exhaust structure design can ensure unobstructed exhaust during glue removal.
4. Equipped with partition beams inside the Chamber, which can adjust and control the atmosphere and supply in each temperature zone.
5. Can be completely customized according to the actual process and requirements of customers.
4﹑Package and shipment
We will well pack the goods based on the kinds of furnaces and customer's requirement.
